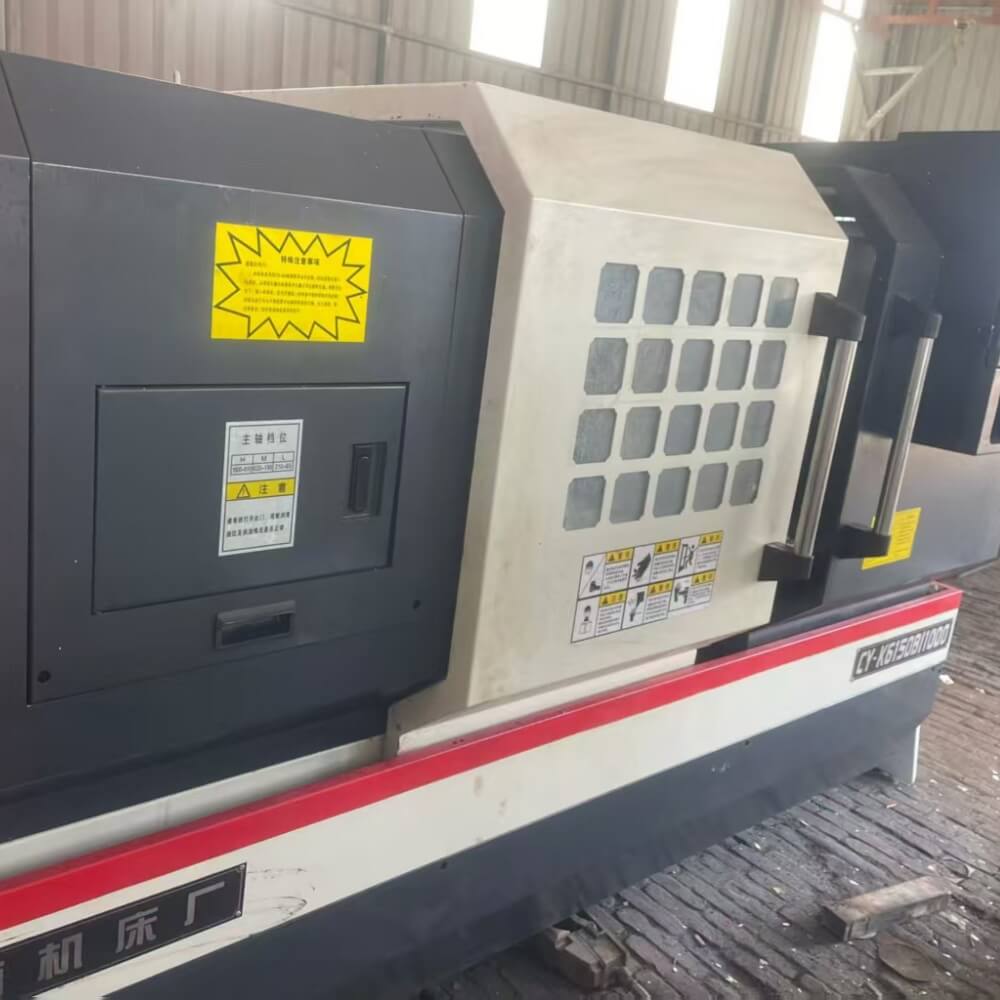

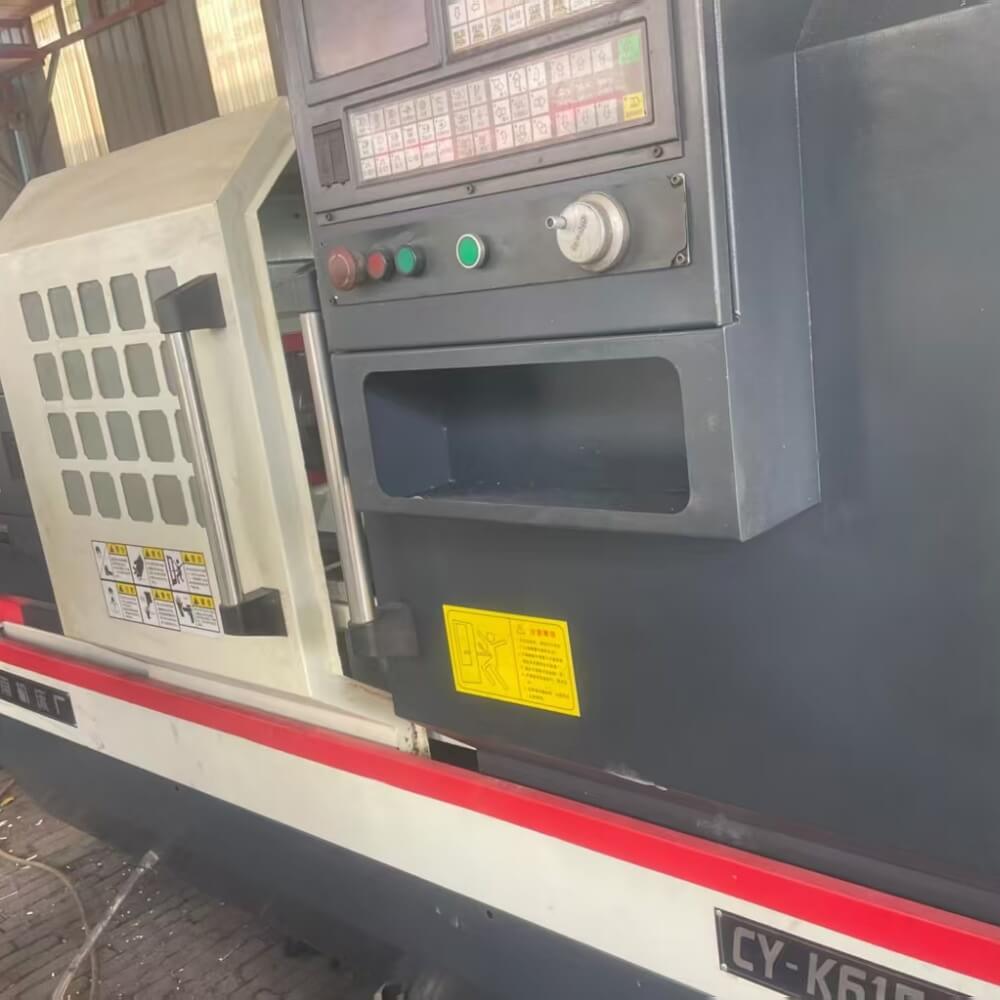

Yunnan CY-K6150B × 1000mm CNC Lathe
- Rigid cast iron bed with hardened & ground guideways
- High-precision gearbox transmission, stable heavy cutting
- 82mm large spindle bore for bar feeding
- Full closed protection, safe & clean operation
- High positioning accuracy (≤0.01mm) & repeatability
- Easy operation, suitable for batch & precision turning
5,900.00$
Main Specifications
- Max. swing over bed: 500 mm
- Max. swing over carriage: 290 mm
- Distance between centers: 1000 mm
- Max. turning length: 880 mm
- Spindle bore diameter: 82 mm
- Spindle nose: A2-8 / D8
- Spindle speed: 35–2500 r/min (3-speed gear + inverter)
- Main motor power: 7.5 kW
- X-axis travel: 280 mm
- Z-axis travel: 1000 mm
- Rapid traverse (X/Z): 6/8 m/min

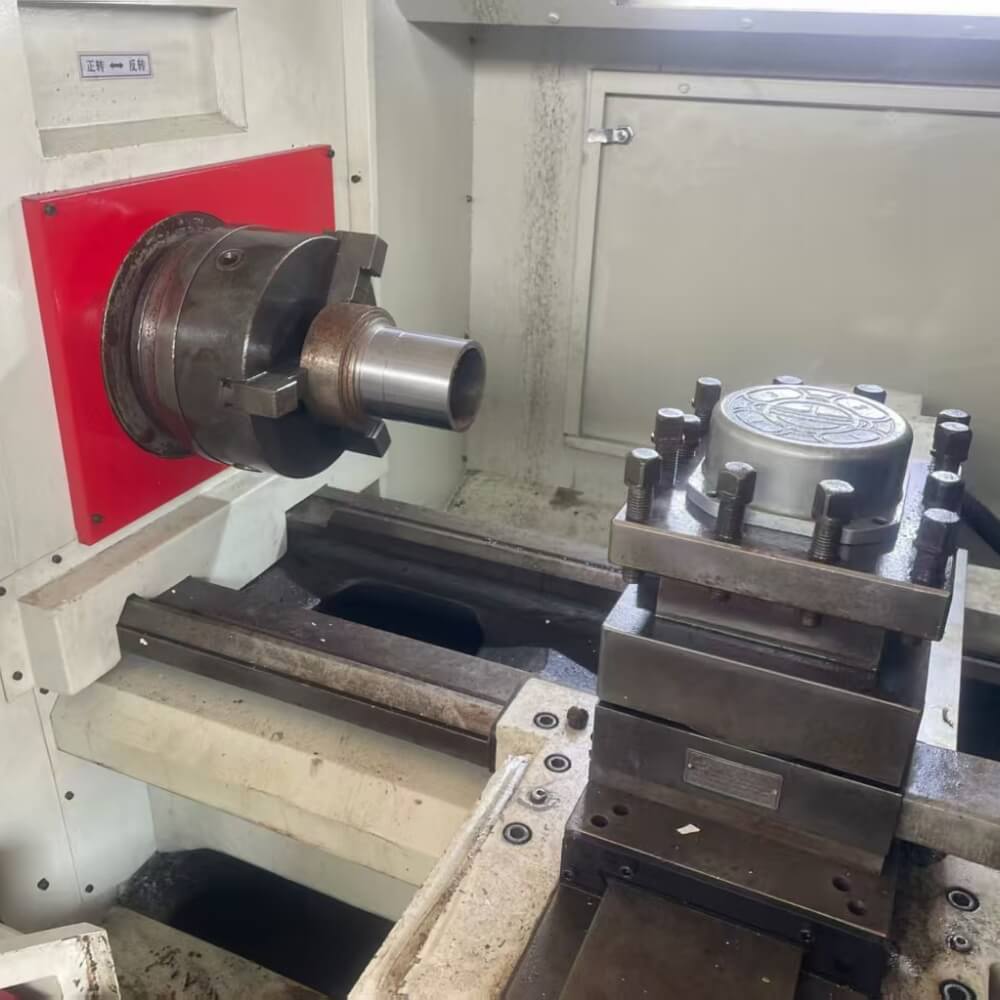

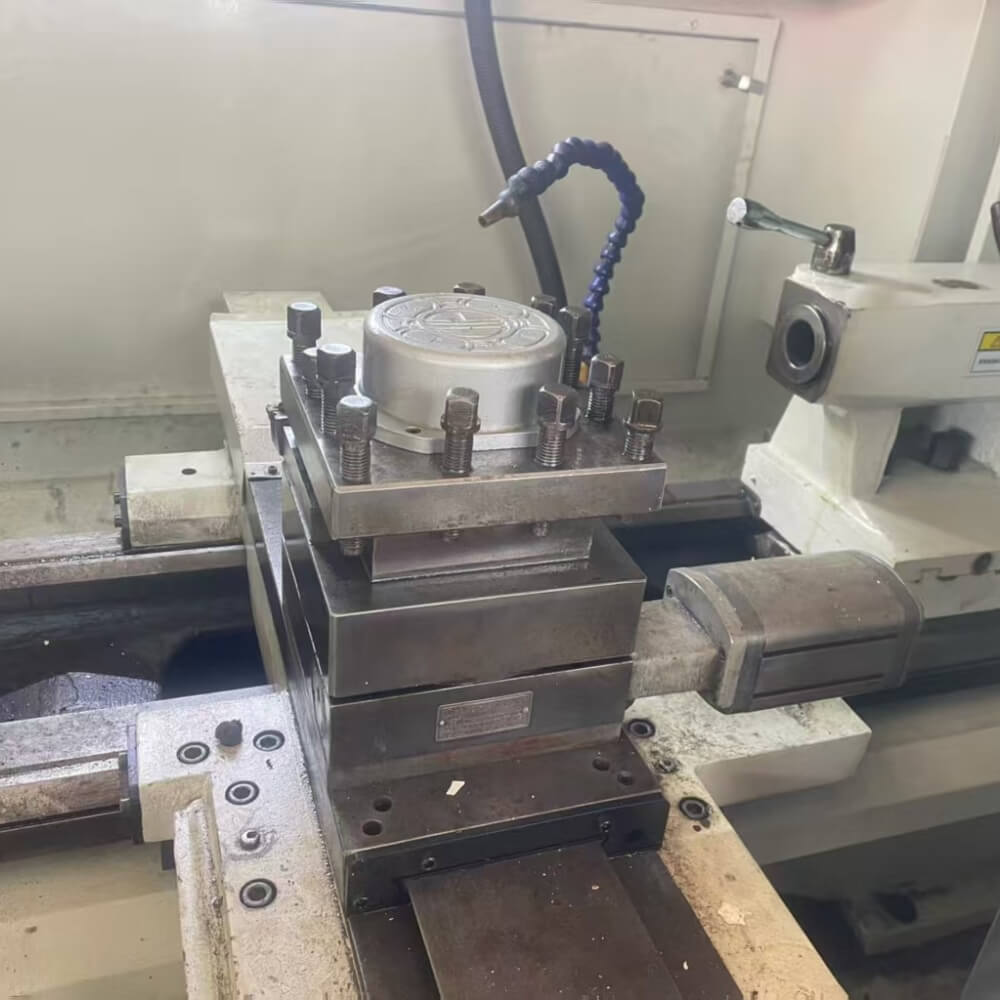

- Tool post: 4-station electric turret
- Chuck: φ250 mm 3-jaw manual chuck
- Tailstock: Manual, sleeve taper MT5
- Bed guide width: 390 mm
- Voltage: 380V/50Hz 3-phase (export adaptable)
