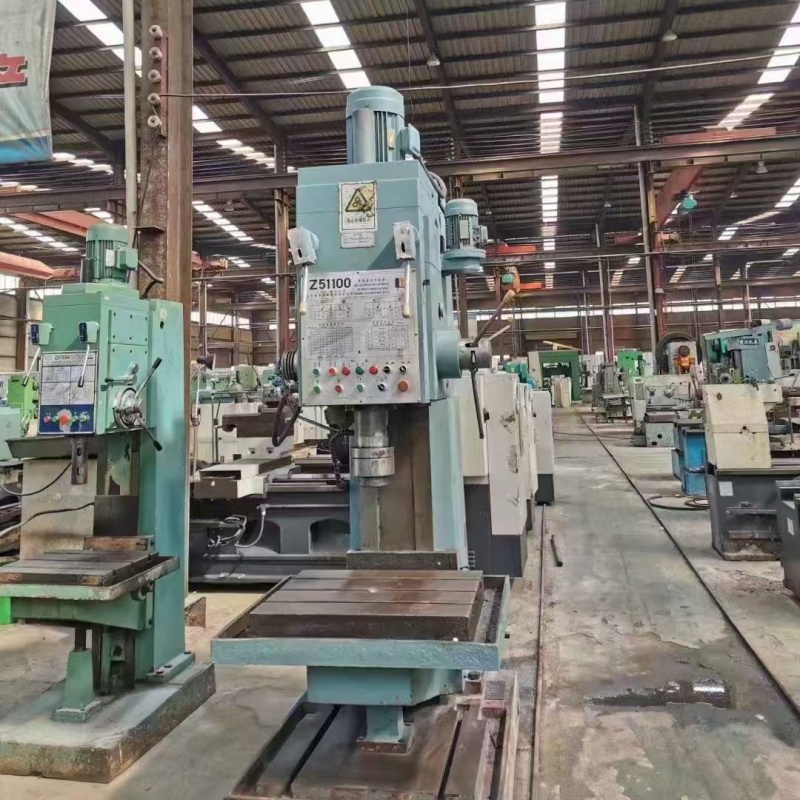

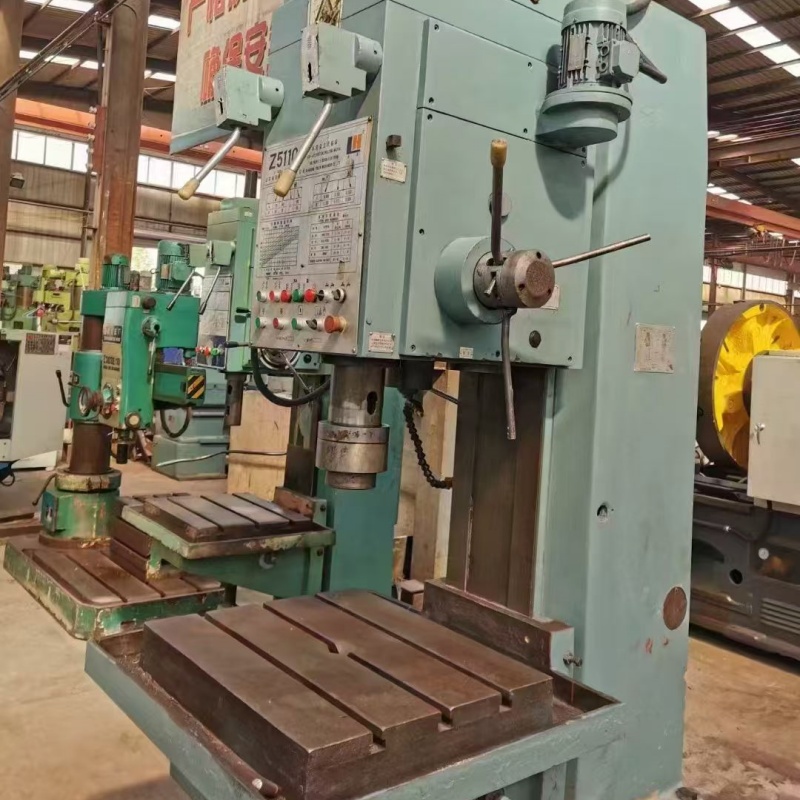

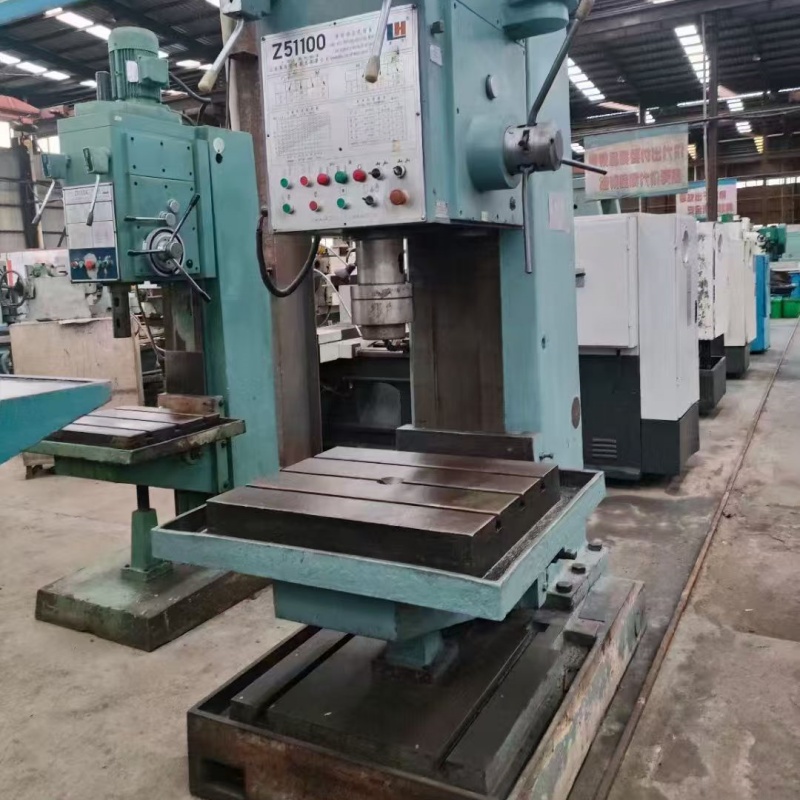

Z51100 vertical drilling machine

  • Mechanical Manufacturing Industry: It is used for processing various mechanical parts, such as drilling holes in shafts, flanges, and other components to meet the assembly and connection requirements.
  • Mold Manufacturing Industry: It is used for processing mold parts, such as injection molds and stamping molds, to drill holes in mold cores, cavities, and other components to ensure the accuracy and quality of the molds.
  • Construction Industry: It is used for processing construction components, such as steel structures and bridges, to drill holes for connection and assembly to ensure the stability and safety of the structures.
  • Shipbuilding and Power Equipment Manufacturing Industries: It is also used for processing related components, such as drilling holes in ship hull structures and power equipment parts to meet the manufacturing and installation requirements.

4,299.00$

ParameterSpecification
Maximum Drilling Diameter100mm
Maximum Feed Resistance40000N
Maximum Allowed Torque of Spindle1150N·m
Spindle TaperMorse No.6
Distance from Spindle Centerline to Guide Rail Surface480mm
Spindle Stroke310mm
Spindle Box Stroke300mm

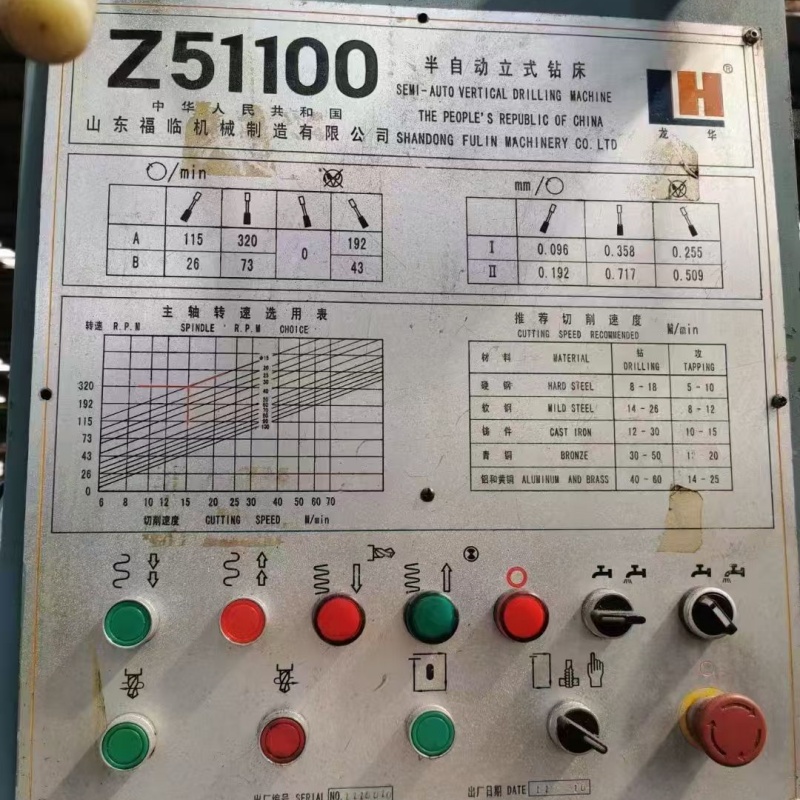

Spindle Speed26 - 320r/min (6 steps)
Feed Rate0.096 - 0.717mm/r (6 steps)
Worktable Stroke300mm
Worktable Working Surface Size760×650mm
Maximum Distance from Spindle End Face to Worktable Surface850mm
Main Motor Power7.5kW
Cooling Pump Flow25L/min
