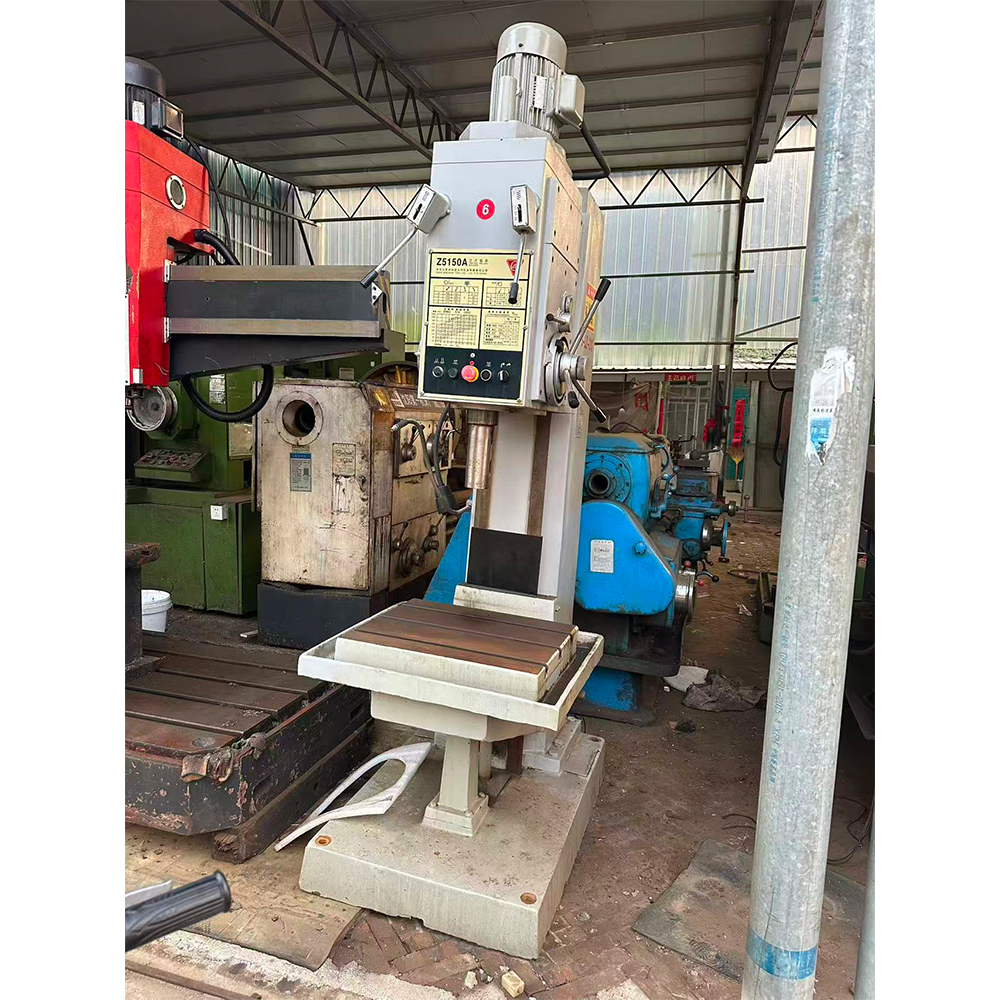

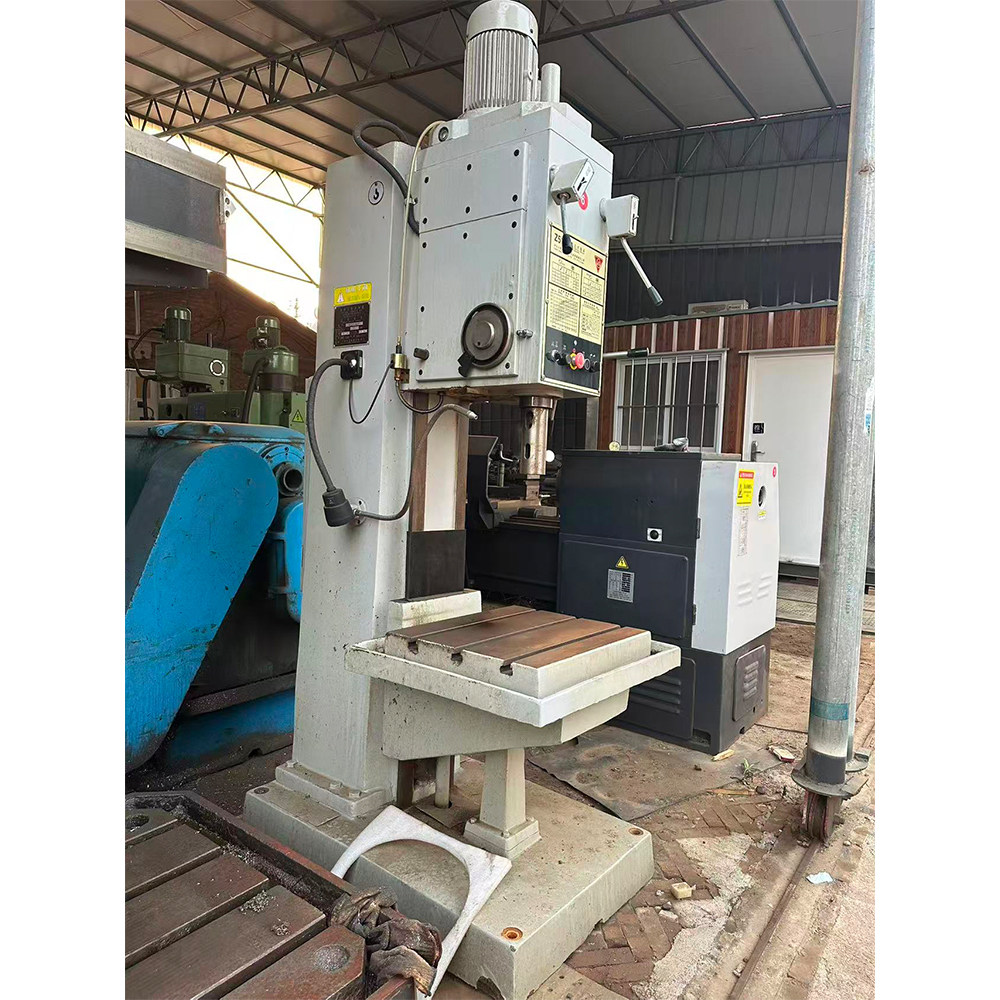

Z5150A Vertical Drilling Machine
Z5150A Vertical Drilling Machine
Core Application Scenarios
The Z5150A is a high-performance vertical drilling machine, suitable for drilling, reaming, tapping and countersinking of metal workpieces. It has stable performance and simple operation, widely used in machinery manufacturing, hardware processing, auto parts and hardware fitting industries.
- Specializes in drilling work of carbon steel, cast iron, alloy steel and non-ferrous metals, with max drilling diameter 50mm for steel and 75mm for cast iron.
- Manual and auto dual feeding mode, flexible to use, adapting to both single-piece processing and small-batch production.
- Compact structure, small floor space, suitable for small and medium workshops and hardware processing factories.
- High positioning accuracy, smooth spindle operation, ensuring neat and accurate drilling holes.
Batch Advantages of Equipment
- High drilling efficiency: Stepless speed regulation adapts to different materials, reducing processing time.
- Easy to operate: Humanized design, simple operation panel, easy to master for new operators.
- Durable and reliable: High-quality cast iron bed, strong rigidity, not easy to deform, long service life.
- Cost-effective: As used equipment, it costs only 30%-50% of new models, with good working condition, suitable for small and medium enterprises and individual workshops.
Original price was: 1,800.00$.1,500.00$Current price is: 1,500.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | Z5150A | Place of Origin (产地) | China |
| Machine Type (机床类型) | Vertical Drilling Machine (立式钻床) | Brand Name (品牌) | Chinese Famous Brand |
| Max. Drilling Diameter (最大钻孔直径) | 50mm (Steel) / 75mm (Cast Iron) | Spindle Speed (主轴转速) | 50-2000rpm (无级调速) |
| Spindle Taper (主轴锥度) | MT4 | Spindle Stroke (主轴行程) | 200mm |
| Working Table Size (工作台尺寸) | 400×400mm | Column Diameter (立柱直径) | 125mm |
| Motor Power (电机功率) | 3kW | Overall Dimensions (外形尺寸) | 1200×800×1800mm |
| Net Weight (净重) | Approx. 800kg | Condition (状态) | Used, Good Working Condition |
| Warranty (质保) | 3 Months (Parts Only) | Feeding Mode (进给方式) | Manual/Auto Dual Mode |
