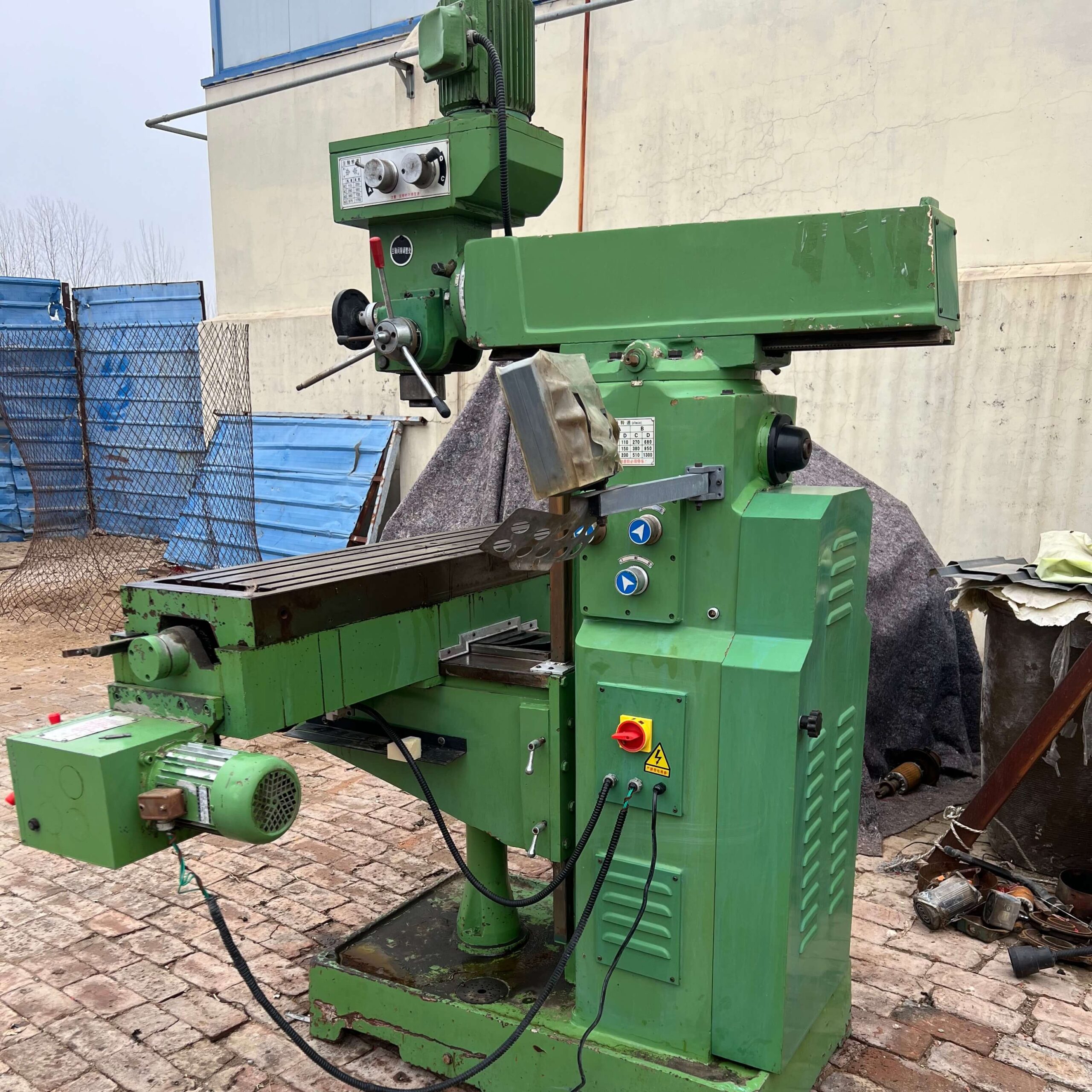

ZX6332A Drilling & Milling Machine

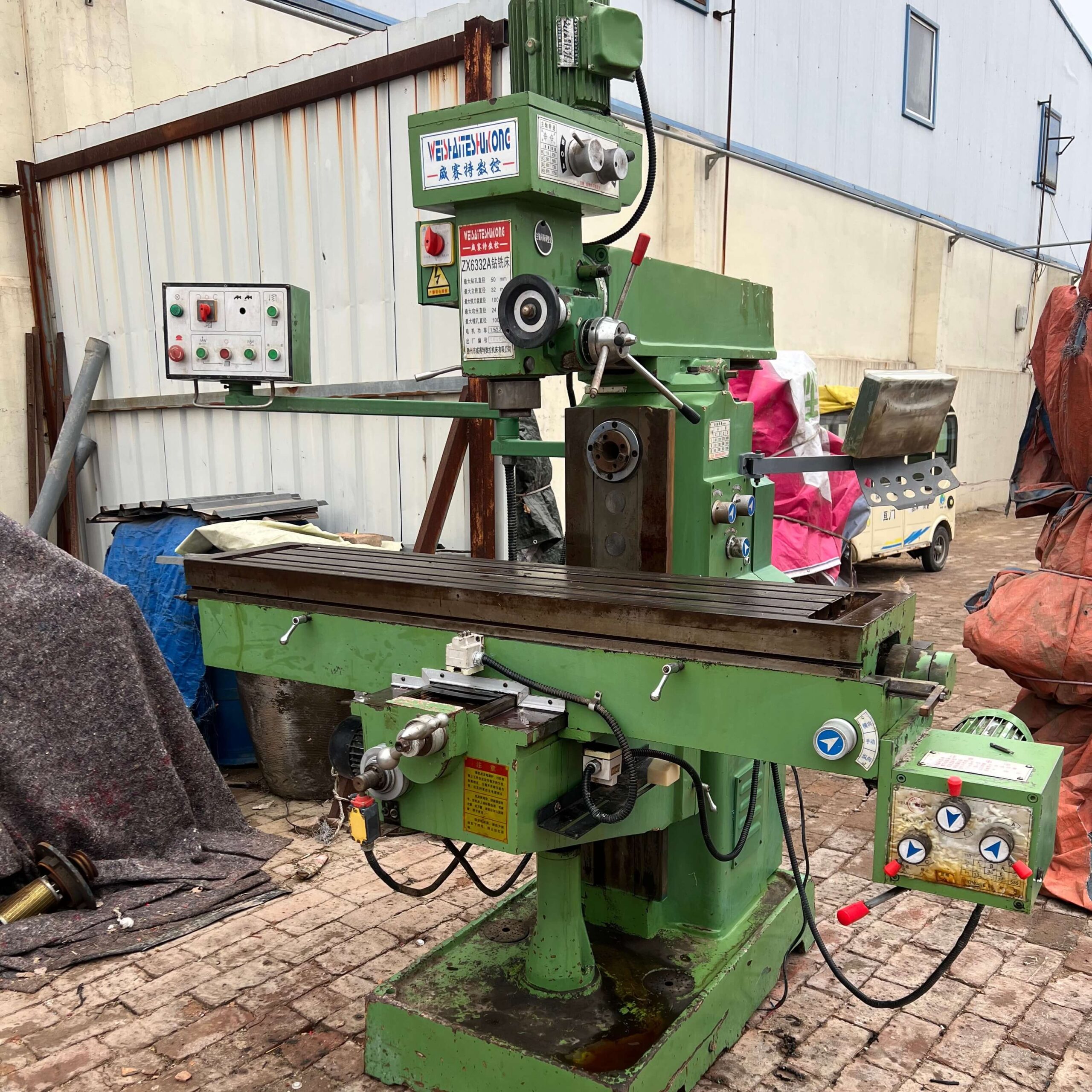

ZX6332A Drilling & Milling Machine - Image 2

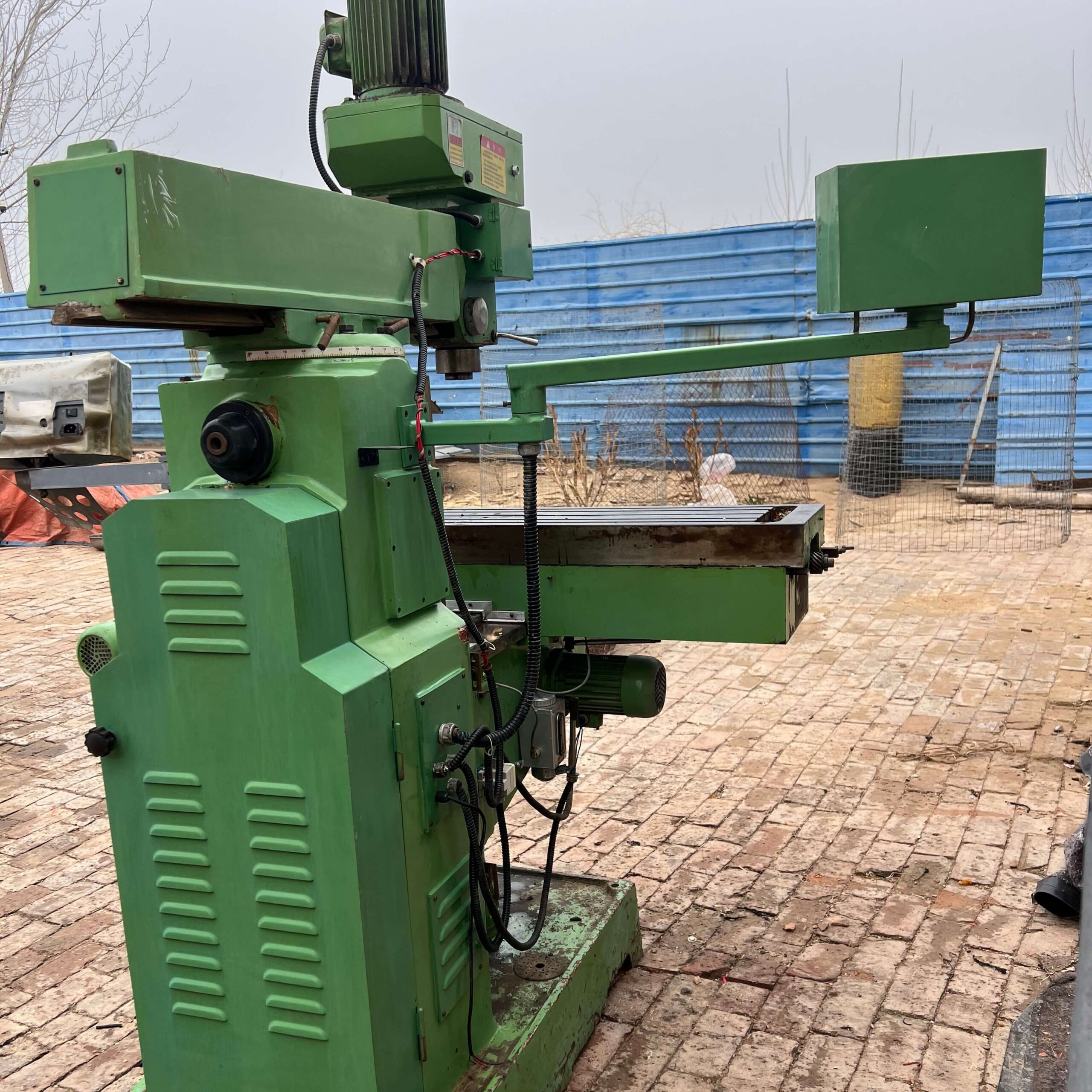

ZX6332A Drilling & Milling Machine - Image 3

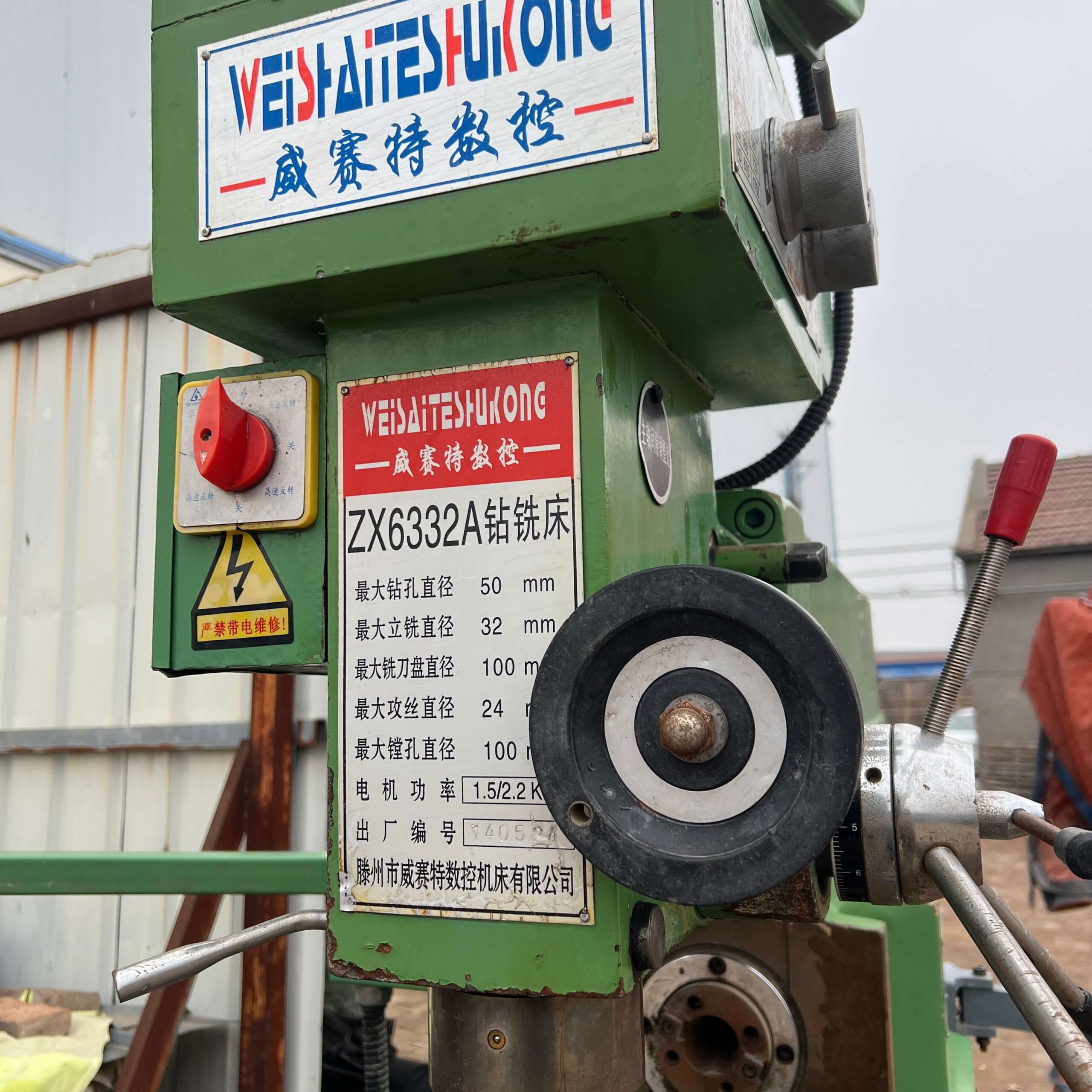

ZX6332A Drilling & Milling Machine - Image 4

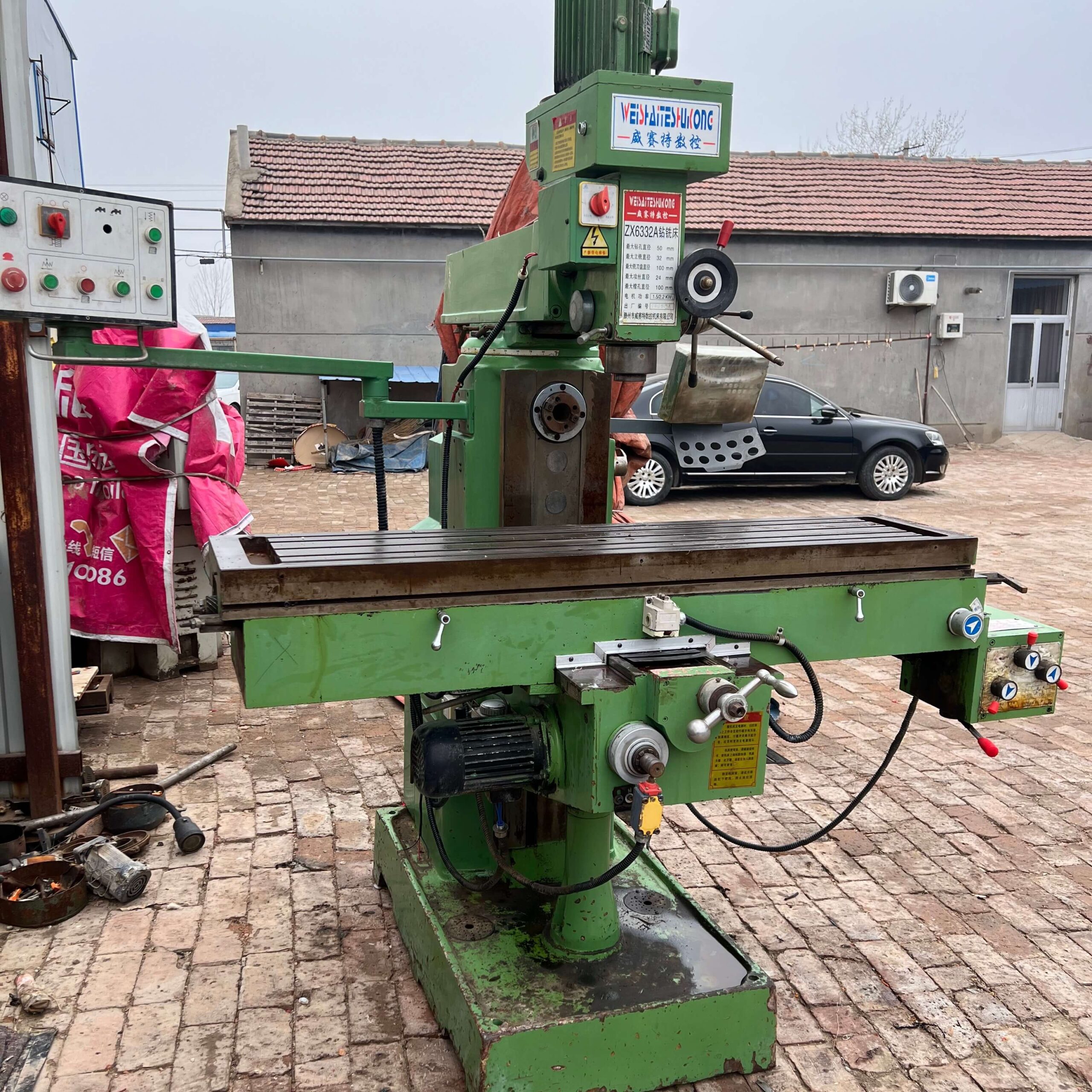

ZX6332A Drilling & Milling Machine - Image 5

ZX6332A Drilling & Milling Machine

  • General Manufacturing: Processing of small and medium-sized mechanical parts, hardware, molds.
  • Automotive & Hardware: Engine parts, shaft sleeves, flanges, and custom metal components.
  • Education & Repair: Ideal for vocational training centers, repair workshops, and small batch production.

2,500.00$

Whatstaap
Send Email
ParameterSpecification
Max. Drilling Diameter50 mm (Steel)
Max. Milling Diameter32 mm
Max. Face Milling Cutter Diameter100 mm
Max. Boring Diameter100 mm
Spindle TaperMT4 (Morse Taper No.4)
Spindle Travel120 mm
Table Size1250 × 320 mm
Table Longitudinal Travel730 mm
Table Cross Travel250 mm
Motor Power1.5/2.2 kW (Dual motor for drilling/milling)
Spindle Speed Range40–1600 rpm (16 speeds, Gear drive)
Voltage380V/50Hz 3-phase (Export customizable)
Net WeightApprox. 1800 kg
Overall Dimensions1900 × 1600 × 2000 mm

Don’t miss your opportunity-our best machines go fast.

🎥 Request a real-time inspection video
📩 Send us your requirement list for matching machines
🧾 Need a quote with shipping cost? Contact us now!
